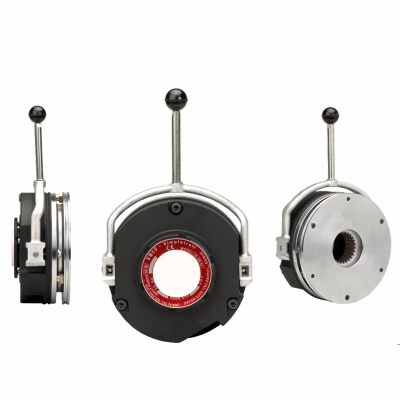

DC Brakes
Emco Simplatroll DC Electro Magnetic Flange Mounted Brakes(Normally Off) are designed for high consistent operating characteristic. With torque range 0.6-2.4 Nm. These Brakes are available with 3 different design to stop the drive or load side either shaft, pulley, sprocket. These are maintenance free & provided with unique pre-stressed spring made of German Spring Steel & coil with F insulation to give million of operations without fatigue. With asbestos free friction materials & long life.
Get a Quote For DC Brakes
DC Brakes Details :
| Minimum Order Quantity | 1 Piece |
| Speed | Upto 3000 RPM |
| Phase | 2 Phase 415 V as Supply of rectifier & Upto 190 V DC for Brake |
| Brand | Stallion & Emco |
| Motor Voltage | NA |
| Power | 20 Watt to 140 Watt |
| Frequency | 50 Hz. +/-5% |
| Usage/Application | All Type of Micro, Small, Medium, Heavy And Large Scale of Industries |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Brake Manufacturer Company's Overview :
- Emco : Emco Group have manufacturing of DC brake, And plant established in Vasai & Baroda
Product Range - DC Brakes :
- Size OR Model : From 06 to 31
- Torque : From 4 Nm. to 600 Nm.
- Power Consumption : From 20 Watt to 140 Watt
- Hub Bore Dia. : From 10 MM to 70 MM
- AC Input Voltage : 415 V AC (Most Common AC Input Voltage),110 V AC, 230 V AC
- DC Brake Coil Voltage : 190 V DC (Most Common Used Brake), 24 V DC, 96 V DC, 105 V DC, 205 V DC (Can customized other coil voltages on request)
- Supply Phase : 2 Ph. 415 V AC
- Operating Frequency : 50 Hz. (+/- 5%)
Features :
- Uncompromised quality
- Manual Release
- Dust Protecting Seal
- Quick service
- Safe & reliable
- Easy mounting
- Easy air-gap setting
- Quick response time
- Adjustable spring tension
- Rust protection
- Long life during the brake life-span
- Available in Square & Round hub
- Minimal noise level to noiseless model
- Insulation class "F"
- Protection range as IP 44 to IP 55
- Coil with stand capacity upto the temp. of 155 °C
- Special liner as biscuit type as well as sandwich type (Non-Asbestos Liner)
- Special bonding solution for liner
- Minimize of maintenance
Switching Options :
- AC Side Switching (Will used when braking time is not critical, Cons. : Engagement time will be 3 to 6 times longer than DC switching)
- DC Side Switching (For, High inertia load required instant braking through using of DC switching, Pro. : Instant braking)
Selection Key (According to Torque) :
- Torque Nm. = 9550 x (Motor KW / RPM) x Safety Factor
Safety Factor :
- Normal Braking : 1.6 to 2 SF
- Hoisting : Min. 2.5 SF
- Hoisting : Max. 3 SF
- Large Application : 4 SF
Uses :
- These type of Electromagnetic Brakes are widely used in Hoisting, Cranes, Whinches, Elevators, Goods Lift, Etc. Where application have must required braking/stopping of moving parts
Application :
- All type of brake motors
- Hoisting
- Crane
- Material Handling Equipment
- Goods Lift Or Elevator
- Industrial Robotics
- Storage Systems
- All Engineering Industries
- Heavy Machinery Industries
- Wood Working Machineries
- Automation Gates
- Industrial Type Presses
- Marble & Granite Industries
- Steel Industries
- Defence Equipments
- Printing Industries
- Tire Industries
- Textile Industries
- Other as all type of equipments, Which have required braking/stopping of moving parts
Important :
- For, Vertical mounting application - Contact to us
- For, VFD application - Contact to us
Request
Callback
Additional Information:
- Item Code: STLADBRK7
- Production Capacity: 1000 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
