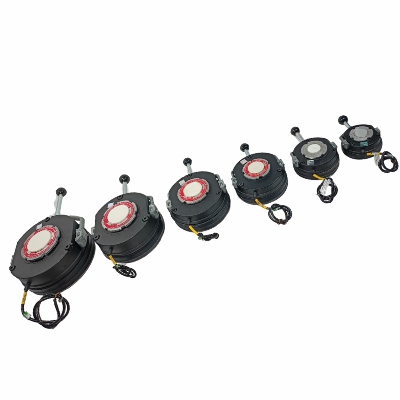

Electromagnetic DC Brakes
Emco-Simplatroll Spring Applied Brake are compact pre-assembled brakes with flange that are easy to fit and particularly economical with integrating fixing screws. The simple brake designs suit static or dynamic brake duties. Spring force applies the brake and current to a D.C. coil releases it. At the low end, these brakes are unique in providing simple spring applied braking down to 0.5Nm. Manual hand release is also available.
Get a Quote For Electromagnetic DC Brakes
Electromagnetic DC Brakes Details :
| Minimum Order Quantity | 1 Piece |
| Brand | Stallion & Emco |
| Phase | Two Phase 415 V AC +/- 10%, 50 Hz. +/- 5% for Rectifier & Upto 190 V DC For Brake |
| Material | SS, MS, CI |
| Voltage | 415 V AC & Upto 190 V DC |
| Usage/Application | Uses in All Type of Micro, Small, Medium, Heavy And Large Scale of Industries |
| Size | 06 to 31 for DC Brakes |
| Power | 190 V DC (Most Comman Used Brake), 24 V DC, 96 V DC, 105 V DC, 205 V DC |
| Speed | Upto 3000 RPM |
| Surface | Asbestos free liner |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Brake Manufacturer Company's Overview :
- Emco : Emco Group have manufacturing of DC brake, And plant established in Vasai & Baroda
Product Range - Electromagnetic DC Brakes :
- Size OR Model : From 06 to 31
- Torque : From 4 Nm. to 600 Nm.
- Power Consumption : From 20 Watt to 140 Watt
- Hub Bore Dia. : From 10 MM to 70 MM
- AC Input Voltage : 415 V AC (Most Common AC Input Voltage),110 V AC, 230 V AC
- DC Brake Coil Voltage : 190 V DC (Most Common Used Brake), 24 V DC, 96 V DC, 105 V DC, 205 V DC (Can customized other coil voltages on request)
- Supply Phase : 2 Ph. 415 V AC
- Operating Frequency : 50 Hz. (+/- 5%)
Features :
- Uncompromised quality
- Manual Release
- Dust Protecting Seal
- Quick service
- Safe & reliable
- Easy mounting
- Easy air-gap setting
- Quick response time
- Adjustable spring tension
- Rust protection
- Long life during the brake life-span
- Available in Square & Round hub
- Minimal noise level to noiseless model
- Insulation class "F"
- Protection range as IP 44 to IP 55
- Coil with stand capacity upto the temp. of 155 °C
- Special liner as biscuit type as well as sandwich type (Non-Asbestos Liner)
- Special bonding solution for liner
- Minimize of maintenance
Switching Options :
- AC Side Switching (Will used when braking time is not critical, Cons. : Engagement time will be 3 to 6 times longer than DC switching)
- DC Side Switching (For, High inertia load required instant braking through using of DC switching, Pro. : Instant braking)
Selection Key (According to Torque) :
- Torque Nm. = 9550 x (Motor KW / RPM) x Safety Factor
Safety Factor :
- Normal Braking : 1.6 to 2 SF
- Hoisting : Min. 2.5 SF
- Hoisting : Max. 3 SF
- Large Application : 4 SF
Uses :
- These type of Electromagnetic Brakes are widely used in Hoisting, Cranes, Whinches, Elevators, Goods Lift, Etc. Where application have must required braking/stopping of moving parts
Application :
- All type of brake motors
- Hoisting
- Crane
- Material Handling Equipment
- Goods Lift Or Elevator
- Industrial Robotics
- Storage Systems
- All Engineering Industries
- Heavy Machinery Industries
- Wood Working Machineries
- Automation Gates
- Industrial Type Presses
- Marble & Granite Industries
- Steel Industries
- Defence Equipments
- Printing Industries
- Tire Industries
- Textile Industries
- Other as all type of equipments, Which have required braking/stopping of moving parts
Important :
- For, Vertical mounting application - Contact to us
- For, VFD application - Contact to us
Request
Callback
Additional Information:
- Item Code: STLADBRK8
- Production Capacity: 1000 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
